01 · Wide rivers
Heavy placer beyond what a 4-inch can handle
19 m³/h capacity and an 8-inch hose suit wide, fast rivers where smaller dredges starve out on flow.

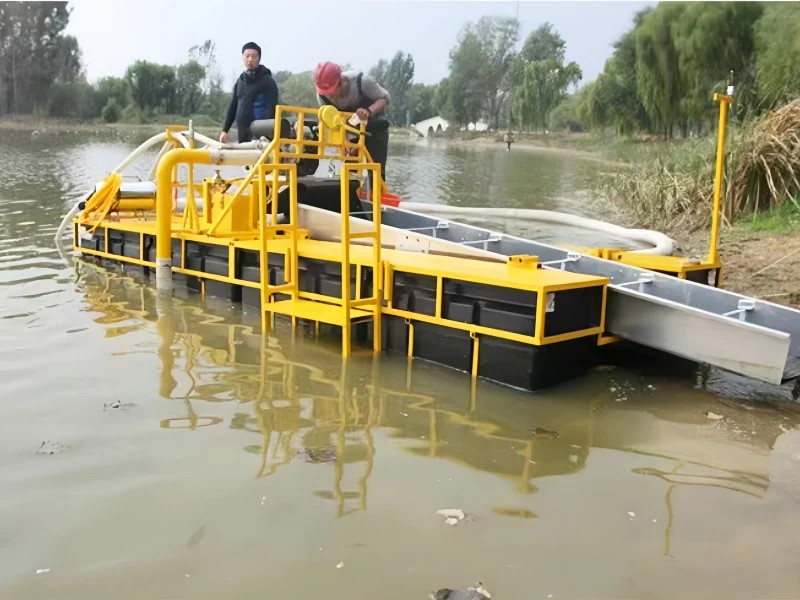

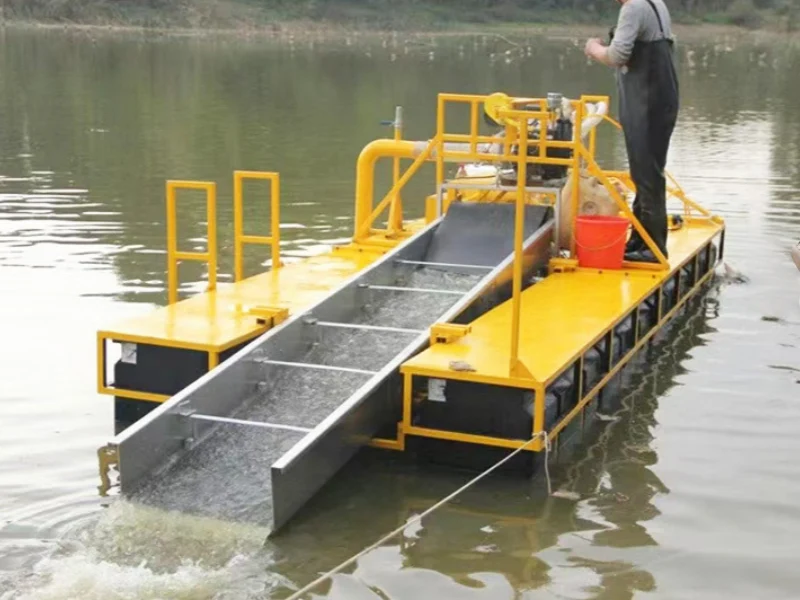

QRUN-GD 8IN · 19 m³/h
02 — Full specifications
Complete QRUN-GD 8IN spec sheet
Factory datasheet for the 8-inch fixed-hull dredge. For diamond-mining sluice configurations, extended air-line setups, or hull customisation, talk to engineering.
| Identification | |
| Product name | Fixed-Hull 8-Inch Gold Panning Boat |
| Model number | QRUN-GD 8IN |
| Category | Cutter Suction Dredger · fixed hull |
| Performance | |
| Processing capacity | 19 m³/h |
| Work depth | Max. 12 m |
| Fuel consumption | 9 L/h |
| Crew size | Supports 2 underwater divers + surface crew |
| Geometry & hull | |
| Sand-suction hose | 8 in × 15 m |
| Sluice box (L × W) | 4.8 × 0.75 m (doubled length) |
| Floating body | 6.34 × 2.3 × 0.55 m |
| Hull material | High-strength corrosion-resistant PE |
| Net weight | 855 kg |
| Power & pump | |
| Engine | 40 hp gasoline |
| Water pump | P1500 · flow up to 400 m³/h |
| Air compressor | GAST K263 (USA) · oil-free · 2-diver capacity |
| Drive train | Direct-drive engine → pump (no clutch loss) |
| Commercial | |
| Minimum order quantity | 1 set |
| Delivery time | Within 15 days from down-payment |
| Payment terms | T/T · L/C · Western Union · MoneyGram |
| Shipping method | Sea freight (one 20-foot container) |
| Warranty | 12 months · lifetime technical support |
03 — How it works
Four stages from launch to gold capture
Direct-drive powertrain, two-diver dive crew, doubled-length sluice — set up for long shifts on wide rivers.
STAGE 01
Launch & anchor
One 20-foot container delivers the complete unit. The PE hull is launched, anchored, and oriented against current — no separate barge required.
STAGE 02
Engine + pump
40 hp gasoline engine drives the P1500 pump directly. 400 m³/h flow rate produces strong suction across the full 8-inch hose at 12 m depth.
STAGE 03
Two-diver dive
GAST K263 oil-free compressor supplies air to two divers simultaneously. Jet tee with dual nozzles reduces stone-blockage probability.
STAGE 04
Doubled sluice recovery
4.8 m sluice box captures gold across a doubled riffle bed — and recovers diamonds in the same pass for combined-mineral operations.
04 — Why QRUN-GD 8IN
The lightest, quietest, most fuel-efficient class
The four design choices that put QRUN-GD 8IN ahead of competing 8-inch dredges in its weight class.
01 — PROPULSION
Direct-drive, 9 L/h fuel consumption
The 40 hp engine drives the P1500 pump directly — no clutch loss, no belt slip. The engine-pump-compressor combination is the lightest, quietest, and most fuel-efficient gold-dredge powertrain in the 8-inch class today.
02 — SUCTION
Jet tee + dual nozzles
The jet tee design maximises siphon at 12 m depth and reduces the probability of stone blockages on coarse gravel beds.
- P1500 pump · 400 m³/h flow
- Dual injection nozzles
03 — HULL
High-strength PE, weather + corrosion resistant
The floating body is high-strength PE with excellent weather and corrosion resistance — survives salt, sun, and abrasion across multi-season operations.
04 — CREW
2-diver air supply (US-made GAST K263)
Oil-free GAST K263 compressor supplies sufficient air for 2 underwater operators simultaneously. Recover gold and diamonds across the same pass with a doubled-length sluice.
05 — Application scenarios
Where QRUN-GD 8IN is the right call
Four operating profiles for QRUN-GD 8IN — wide-water, deep-water, large-team operations a 4-inch dredge cannot reach.

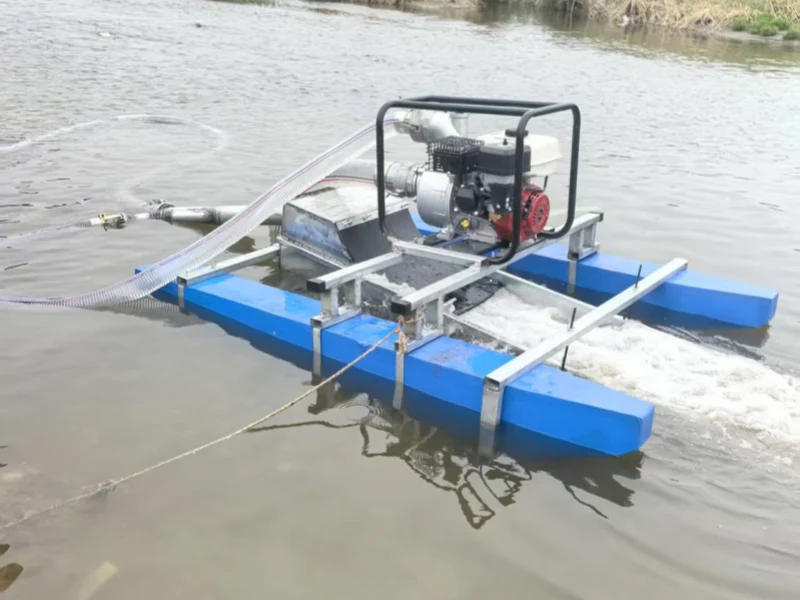

02 · Lakes & lagoons
Stable PE hull holds station across long shifts
Corrosion-resistant PE floating body suits brackish lagoons and lakes; doubled sluice keeps recovery flat at sustained feed.
03 · Deep-dive crews
Two-diver air supply down to 12 m
GAST K263 compressor supports coordinated two-diver shifts on bedrock-grade gravel beds.
04 · Gold + diamond combo
Doubled sluice captures both in one pass
4.8 m sluice doubles the riffle bed — combined gold + diamond recovery without a second processing line.
Ready to quote
Send your river width, depth and current and we'll size QRUN-GD 8IN for the project.
Most quotes return within 24 hours. We include feasibility check (river width / current / depth), dive-crew staffing notes, container packing layout, and CIF pricing to your nearest port.
- 01Tell us river width, current, depth and crew size
- 02Engineering responds with capacity recommendation and an itemised quote
- 03Production on down-payment · one 20-foot container, sea freight within 15 days
Direct line · WhatsApp
+8613853632667
Email · Engineering
wazchina@gmail.com
Factory · Shandong, China
Masong Industrial Park, Huanglou, Qingzhou
Trade terms
FOB / CIF Qingdao · sea freight worldwide
