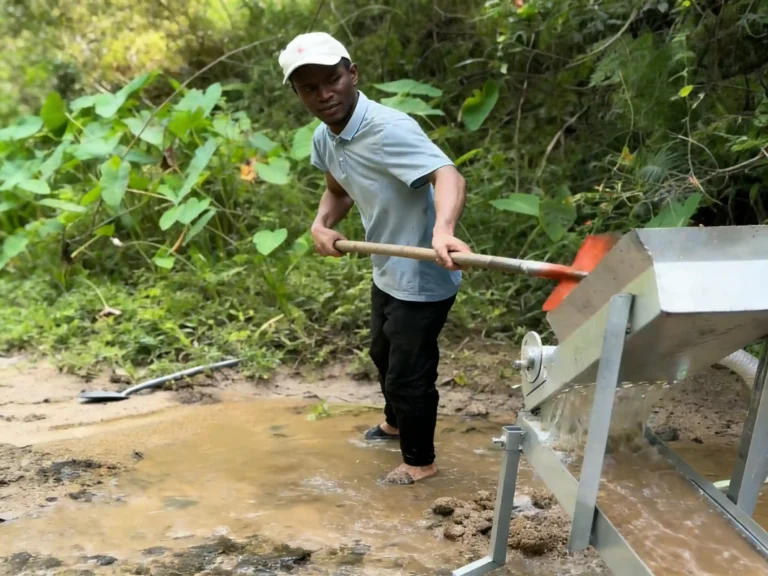

01 · Rivers & river beaches
Heavy-mineral deposits along bends and beaches
The most common application — operate directly on shore as the chassis rotates between feed points.
QRUN 1535 · 100–120 t/h
02 — Full specifications
Complete QRUN 1535 spec sheet
Every parameter as it appears in our factory datasheet. For optional centrifuge add-ons, tracked-chassis configuration, or jet-feed variants, talk to engineering.
| Identification | |
| Product name | Mobile Gold-Panning Cart |
| Model number | QRUN 1535 |
| Category | Gold-Panning Cart · mobile placer plant |
| Performance | |
| Handling capacity | 100 – 120 t/h |
| Coarse-gold recovery | ≥ 95 % (with centrifuge stage) |
| Feeding mode | Excavator or wheel-loader recommended |
| Feed height | 3.7 m |
| Max. feed size | ≤ 280 mm |
| Geometry & chassis | |
| Roller (drum) screen | Ø 1.5 m × 1.5 m |
| Sluice chute (W × L) | 1000 × 6000 mm |
| Tires | 6 × solid engineering tires |
| Traction speed | ≤ 15 km/h |
| Power & drive | |
| Electric generator | 70 kW (Weichai) |
| Roller-screen power | 11 kW |
| Sand-pump power | 22 kW |
| Total power | 33 kW |
| Speed reducer | 400 # |
| Commercial | |
| Minimum order quantity | 1 set |
| Delivery time | Within 15 days from down-payment |
| Payment terms | T/T · L/C · Western Union · MoneyGram |
| Shipping method | Sea freight (CIF / FOB Qingdao) |
| Warranty | 12 months · lifetime technical support |
03 — How it works
Four continuous stages from feed to fine-gold capture
Excavator-fed front end, drum-screen pre-classification, gravity concentration, and a 6 m sluice — every stage tunable on-site without dismantling the unit.
STAGE 01
Loading & pre-screen
Excavator or wheel-loader drops feed into the large vibrating hopper. Pre-screen rejects stones over 60 cm so the drum handles only target-range material.
STAGE 02
Drum washing & screening
Ø 1.5 m drum with front-end reamer cylinder peels off clay and mud. Center + side flushing separates fines below 20 mm and prevents external mesh clogging.
STAGE 03
Gravity concentration

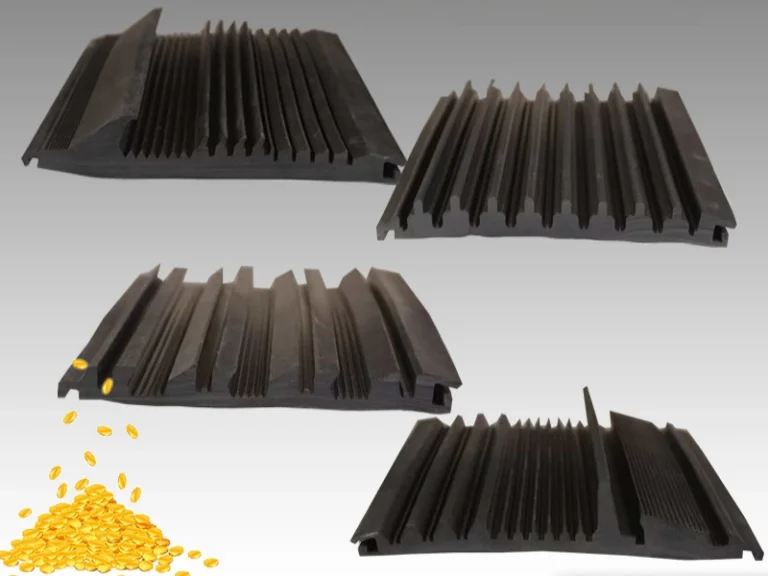

Fines flow into the 1000 × 6000 mm sluice. Density-difference plates and riffles capture coarse gold; optional jig chute boosts mid-sized particle recovery.
STAGE 04
Centrifuge & cleanup
Optional water-jacket centrifuge takes concentrate to ≥ 95 % recovery on coarse gold. Rear waste conveyor keeps tailings off the chassis path.
04 — Why QRUN 1535
Built to relocate and keep processing
The four design choices that separate QRUN 1535 from a static feeder-screen-sluice rig.
01 — EFFICIENCY
Drum + washing-cylinder front end
Front-section reamer washing cylinder extends the wash process so high-mud feed clears the drum without stalling. Side + center flushing keeps the external mesh open continuously.
02 — ADAPTABILITY
180° in-situ rotation, multi-terrain chassis
Wheeled chassis (optional tracked) tractor-towable, rotates in place, switches operating site without disassembly.
- River-edge alluvial
- Alluvial plains & deserts
- Abandoned pit re-mining
03 — SERVICEABILITY
Polyurethane lining + alloy wear parts
Internal liner protects the drum from abrasive feed; key wear components are made of wear-resistant alloy. Result: low failure rate in harsh placer environments, fewer return-shipments.
04 — SCALABILITY
One family, 5 – 150 ton variants
Same control language, same wear-parts catalogue across small (5–10 t), 50 t, 100 t and 150 t units. Add vibrating chutes, agitating chutes or centrifuges as the deposit demands.
05 — Application scenarios
Where the 100-ton cart is already shipping
Three operating profiles for the original Qrun cart family — plus one for re-mining historical sites. Tell us your feed type and we will match the closest reference.
02 · Alluvial plains
Rich placer below the surface of river-formed plains
Excavate sand layers and feed the cart directly; mobility lets the unit follow the deposit.
03 · Abandoned pits
Secondary recovery of residual placer ore
Re-enter previously mined pits to recover residual gold — improves resource utilisation without new excavation.
04 · Dry beach & Gobi
Closed-water-loop dry placer
Optional water-recycling kit lets the cart operate in arid Gobi or dry-beach terrain with minimal fresh-water draw.
Ready to quote
Send your site conditions and we'll size QRUN 1535 for your project.
Most quotes return within 24 hours. We include feed-rate calc, generator + pump sizing, container layout, and CIF pricing to your nearest port.
- 01Tell us throughput target, feed mud %, and water source
- 02Engineering responds with sized spec, optional add-ons, and an itemised quote
- 03Production starts on down-payment · sea freight within 15 days
