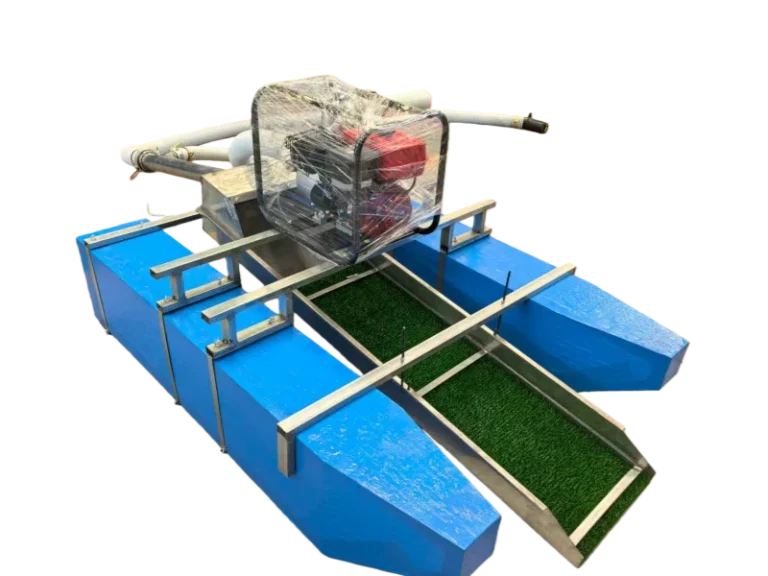

01 · Deep-water rivers
Reaches gravel pockets up to 6 m below surface
4-inch siphon hose and oil-free compressor support an underwater operator on bedrock-grade gravel.
QRUN-GD 4IN · 4 m³/h
02 — Full specifications
Complete QRUN-GD 4IN spec sheet
Factory datasheet for the 4-inch portable siphon dredge. For air-line extensions, larger sluice boxes, or 2.5 / 6 / 8-inch variants, talk to engineering.
| Identification | |
| Product name | 4-Inch Portable Gold Dredge |
| Model number | QRUN-GD 4IN |
| Category | Siphon Gold Dredge · portable |
| Performance | |
| Processing capacity | 4 m³/h |
| Work depth | Max. 6 m |
| Fuel consumption | 1.7 L/h |
| Crew size | 2-person (double team) recommended |
| Geometry & build | |
| Sand-suction hose | 4 in × 6 m |
| Sluice box (L × W) | 1.22 × 0.45 m |
| Floating body | 1.85 × 1.15 × 0.45 m |
| Float system | 4 × inflatable rubber airbags (2 rows) |
| Net weight | 89 kg |
| Power & pump | |
| Engine | Honda 6.5 hp gasoline |
| Water pump | DW 180 · 4-inch self-priming |
| Air compressor | Oil-free T80 (diver air supply) |
| Commercial | |
| Minimum order quantity | 1 set |
| Delivery time | Within 15 days from down-payment |
| Payment terms | T/T · L/C · Western Union · MoneyGram |
| Shipping method | Door-to-door or sea freight |
| Package (wooden crate) | 1.85 × 0.7 × 0.6 m · 154 kg |
| Warranty | 12 months · lifetime technical support |
03 — How it works
Four steps from anchor to gold capture
Designed for two operators: one on the engine, one underwater. Setup to first slurry pass measured in minutes, not hours.
STAGE 01
Deploy & inflate
Two-row inflatable airbag float system assembles on a light square-tube frame. Two people get the dredge water-ready in under 15 minutes.
STAGE 02
Suction & jet
Honda 6.5 hp engine drives the DW 180 self-priming pump. Raised jet tee with dual nozzles maximises suction and clears stones that block weaker dredges.
STAGE 03
Underwater work
4-inch suction hose lowered to the gravel bed; the oil-free T80 compressor supplies air to the underwater operator at up to 6 m depth.
STAGE 04
Sluice recovery

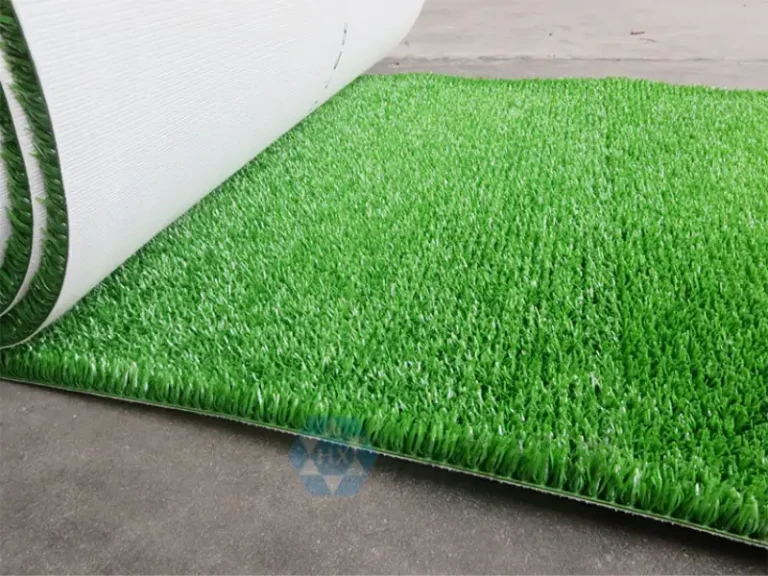

Slurry rises into the 1.22 × 0.45 m sluice box. Rubber mats and gold-catching grass capture gold across the riffle bed while wash water drains back to the river.
04 — Why QRUN-GD 4IN
Built for prospectors, sized for two-person teams
The four design choices that separate QRUN-GD 4IN from a generic backyard dredge.
01 — PORTABILITY
Light square-tube frame, fast disassembly
The frame is square-tube aluminium, light enough for two people to break down and pack into a 1.85 × 0.7 × 0.6 m wooden crate. Travels in the bed of a pickup.
02 — POWER
Honda 6.5 hp clears larger rocks
The engine + DW 180 pump combination produces more siphon than typical 4-inch dredges. Larger stones pass without stalling — fewer mid-operation blockages.
- 1.7 L/h fuel consumption
- Dual injection nozzles
03 — NAVIGABILITY
Raised jet tee + 4 airbag floats
The jet tee rises on the frame to clear shoals and rapids. Two rows of inflatable airbags cut drag in fast flow and absorb wave flex.
04 — RECOVERY
Same mat & grass system as our plants
The sluice box ships standard with rubber mats and gold-catching grass — the exact recovery surface used in our 100-ton cart and 150-ton vibrating systems, just at portable scale.
05 — Application scenarios
Where the 4-inch dredge earns its keep
Four operating profiles for QRUN-GD 4IN — anywhere a wheeled rig cannot reach. Tell us the river and we will match a reference site.
02 · Rapid water
Raised jet tee clears shoals and fast water
Two-row airbag floats stay stable in fast flow; the jet tee rises on the frame for shallow-water transits.
03 · Double-team prospecting
Sized for 2 operators on opposite ends
One operator manages the engine and sluice; the second operates underwater on the suction hose. Standard prospecting team.
04 · Remote claim sites
Packs into a single 1.85 m wooden crate
Disassembles for backcountry transport by pickup, mule, or river-boat. Reassembly to working state in under 15 minutes with two people.
Ready to quote
Send your river conditions and we'll spec the 4-inch dredge for your team.
Most quotes return within 24 hours. We include current-river feasibility check, work-depth advisory, packaging options, and CIF pricing to your nearest port.
- 01Tell us river depth, current speed, and team size
- 02Engineering responds with model recommendation and an itemised quote
- 03Production on down-payment · door-to-door or sea freight within 15 days
Direct line · WhatsApp
+8613853632667
Email · Engineering
wazchina@gmail.com
Factory · Shandong, China
Masong Industrial Park, Huanglou, Qingzhou
Trade terms
FOB / CIF Qingdao · sea freight worldwide
